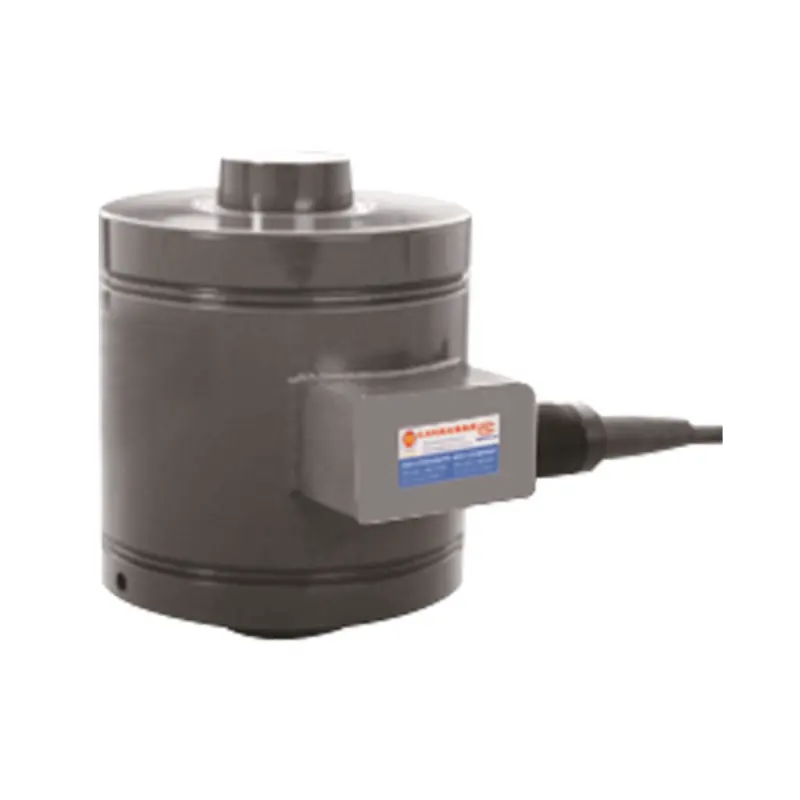

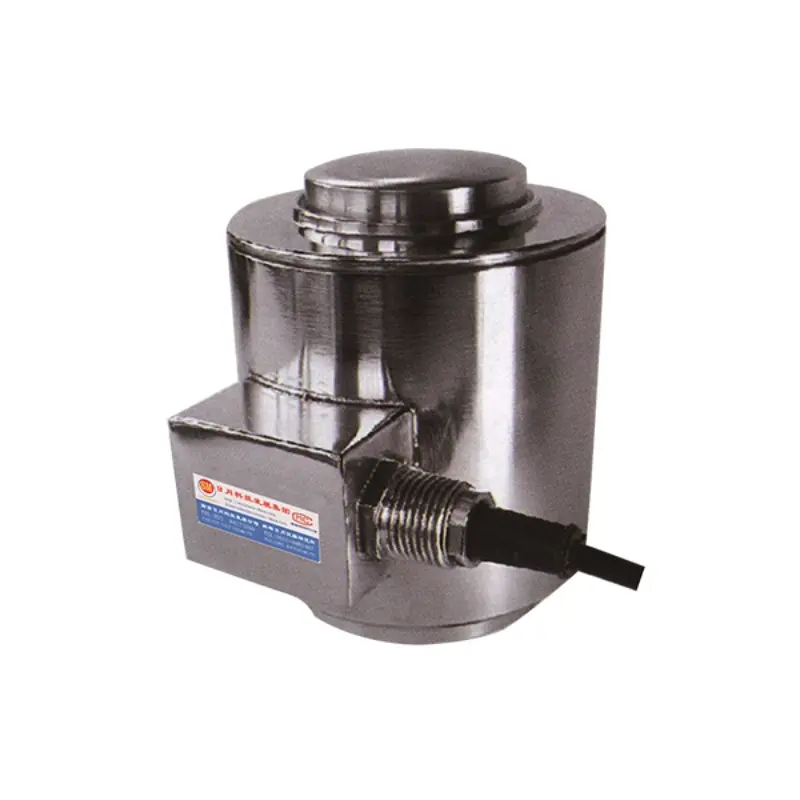

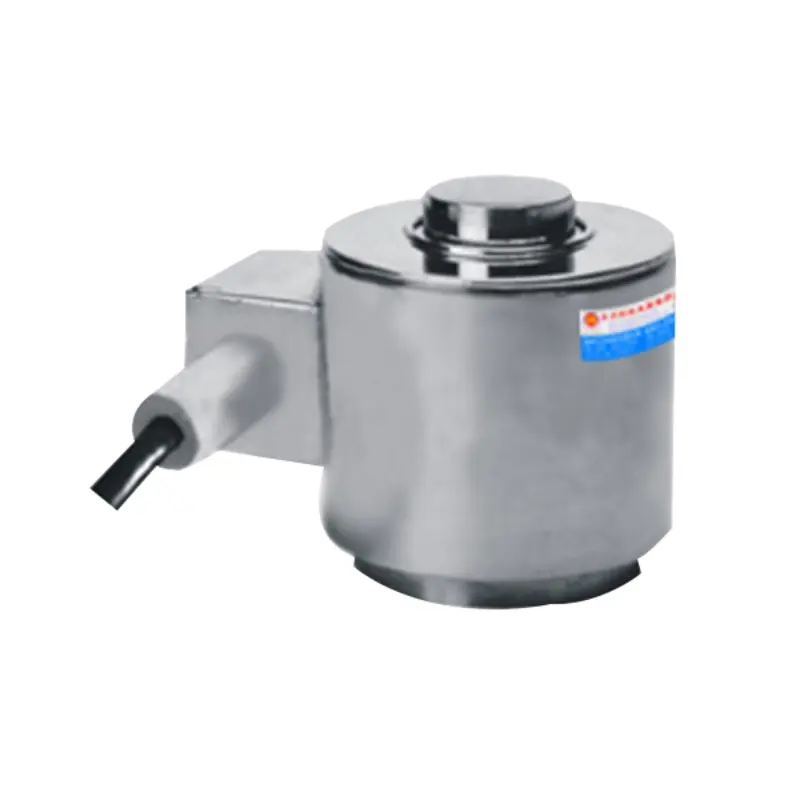

The SM-S5D load cell adopts the BH series foil strain gauge produced with American raw materials and the proprietary processing technology of the American BEAN Company as the power-to-electricity conversion element，The load-bearing mode is a compression structure.It has fast dynamic response and strong overload capacity.It has a relatively good automatic heart adjustment function, waterproof and dustproof, easy to install. It is convenient to use and fully meets the weighing requirements of large tonnage. It can be used for manufacturing electronic truck scales, dynamic rail scales, large-tonnage hopper scales, and industrial weighing and material level control of large-tonnage silos and hoppers.
تحميل
Description
The SM-S5D load cell adopts the BH series foil strain gauge produced with American raw materials and the proprietary processing technology of the American BEAN Company as the power-to-electricity conversion element，The load-bearing mode is a compression structure.It has fast dynamic response and strong overload capacity.It has a relatively good automatic heart adjustment function, waterproof and dustproof, easy to install. It is convenient to use and fully meets the weighing requirements of large tonnage. It can be used for manufacturing electronic truck scales, dynamic rail scales, large-tonnage hopper scales, and industrial weighing and material level control of large-tonnage silos and hoppers.
Characteristics：
- Fully sealed and waterproof,suitable for harsh environments.
- Good dynamic response and strong overload resistance.
- High precision and wide measurement range.

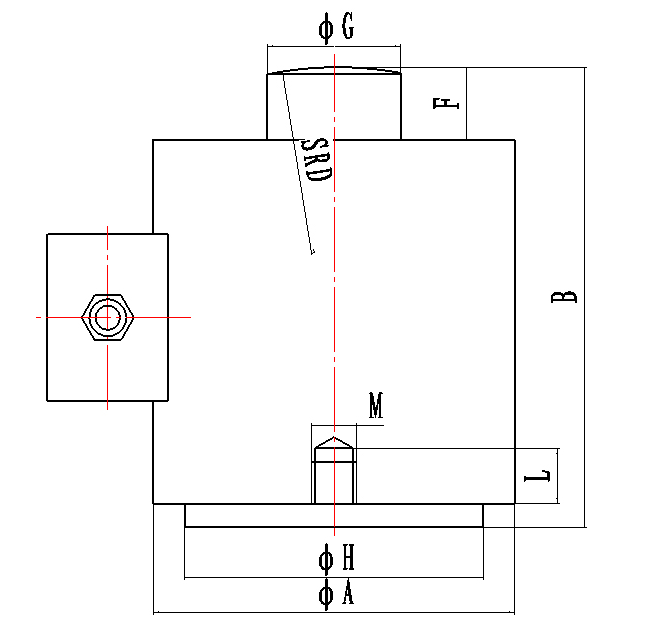

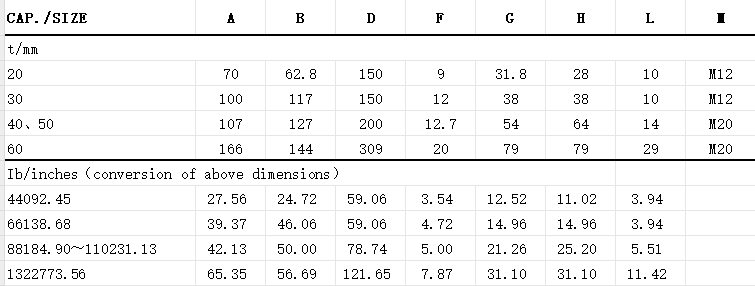

Dimension（In mm. 1mm=0.03937 inches）

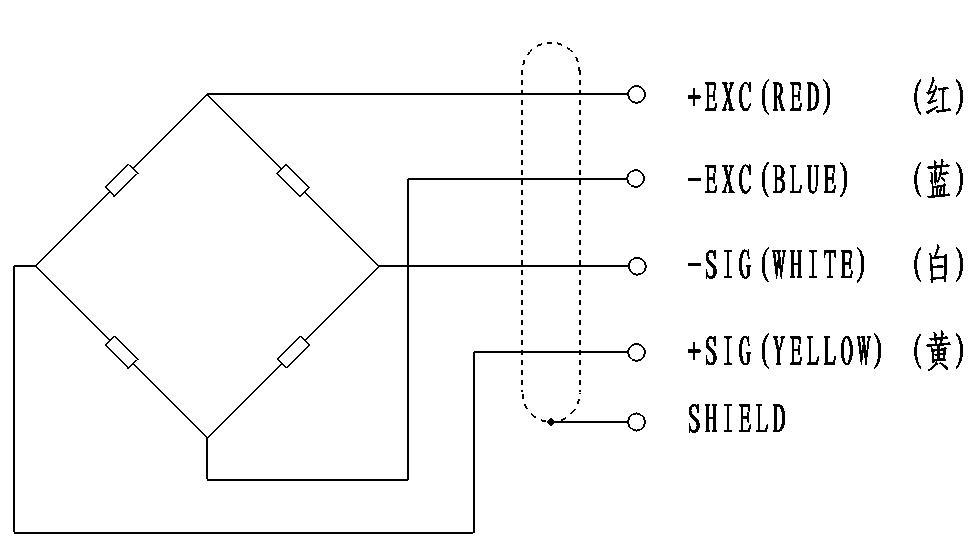

Circuit Diagram
أحمر: +إدخال
أزرق: -إدخال
الأبيض: +الإخراج
الأصفر: -الإخراج
مواصفة
| يكتب | المعايير الفنية |
| نطاق الحمل الاسمي | 20～60t |
| مزود الطاقة | 10~12 فولت تيار مستمر |
| رصيد صفر | 1.0±% من الناتج المقدر |
| مخرج تناظري | 2.0±0.002 ملي فولت/فولت |
| مقاومة الإدخال (Rlc) | 400±20Ω (أوم) |
| مقاومة الخرج (Ro) | 380±5Ω (أوم) |
| مقاومة العزل | ≥5000 ميجا أوم (ميجا أوم) |
| دقة الصف | 0.05%FS |
| تأثير درجة الحرارة | 0.02%FS/10 درجة مئوية |
| درجة حرارة التشغيل | -40~+85 درجة مئوية |
| حد الحمل الآمن | 200% FS |
| هامش أمان ضد الاستسلام | 300% FS |
| هامش أمان ضد الكسر | 500% FS |
| مادة المادة | سبائك فولاذية عالية الأداء أو (نسبة الكروم> 15% الفولاذ المقاوم للصدأ) |
| نوع الحماية | IP68 |
