جهاز إرسال الضغط الرقمي اللاسلكي SM39PWB

مقدمة

SM39PWB wireless load sensor is designed for pressure testing in oil and gas fields and other industrial applications. It integrates a low-power embedded MCU with low-power wireless digital communication technology to create a high-performance wireless sensor. As a key front-end acquisition device for the digital oilfield and the Internet of Things in oil and gas production, it transmits data characterizing field conditions via local wireless networks for remote telemetry.

Its highly reliable design for industrial environments, combined with high accuracy, simple installation, easy maintenance, and environmentally friendly durability, has earned widespread user acceptance. The sensor has been successfully deployed not only in major domestic oilfields such as Shengli, Daqing, Huabei, Changqing, Xinjiang, and Qinghai, but also in selected overseas oil companies.

صفات:

• Pipeline pressure testing—already widely used in major domestic oilfields and other industrial fields.
•  Explosion-proof design: flameproof aluminum housing with intrinsically safe circuitry. Protection rating: IP67 fully sealed waterproof.
• Zigbee communication—configurable and testable as coordinator or router in the network.
• 4½-digit LCD displays pressure data and battery voltage.
•  LEDs indicate reset, config mode, network join, and data acquisition.
• Adjustable mounting orientation via union or adapter connection to on-site pipeline valves.

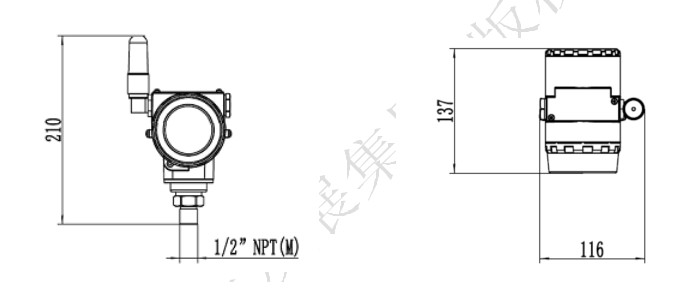

الأبعاد

مخطط الدائرة:

سلكين نظام: EXC+: أحمر EXC-: أسود

مواصفة
