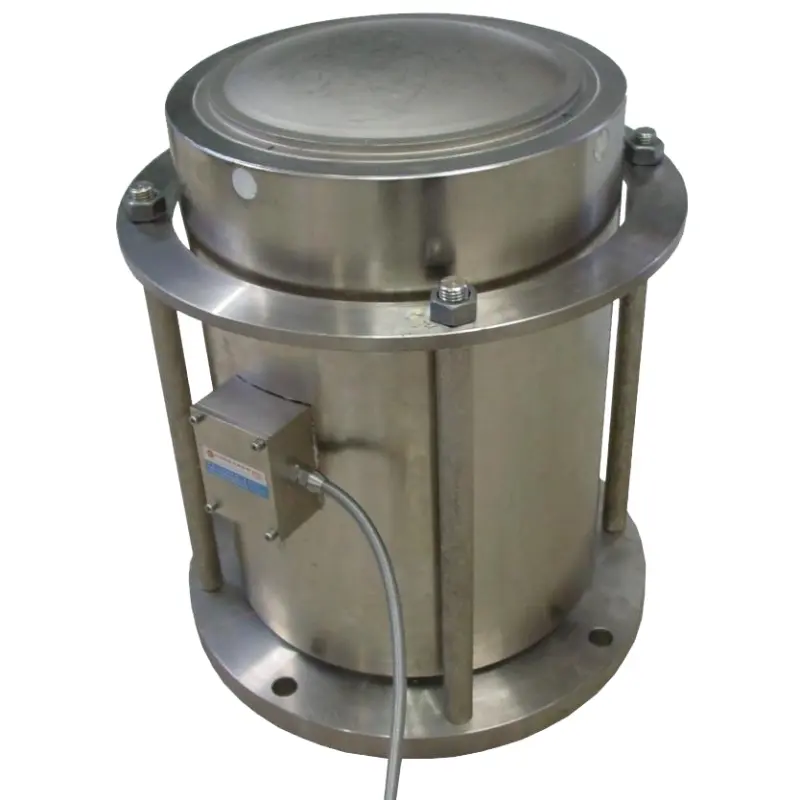

The SM-4B load cell adopts the BH series foil strain gauge produced with American raw materials and the proprietary processing technology of the American BEAN Company as the power-to-electricity conversion element，The load-bearing mode is a compression structure.It has a relatively good automatic heart adjustment function, waterproof and dust-proof, easy to install.
It is convenient to use and fully meets the weighing requirements of large tonnage. It can be used for manufacturing electronic truck scales, dynamic rail scales, large-tonnage hopper scales, and industrial weighing and material level control of large-tonnage silos and hoppers.
The SM-4B load cell adopts the BH series foil strain gauge produced with American raw materials and the proprietary processing technology of the American BEAN Company as the power-to-electricity conversion element，The load-bearing mode is a compression structure.It has a relatively good automatic heart adjustment function, waterproof and dust-proof, easy to install.
It is convenient to use and fully meets the weighing requirements of large tonnage. It can be used for manufacturing electronic truck scales, dynamic rail scales, large-tonnage hopper scales, and industrial weighing and material level control of large-tonnage silos and hoppers.
Karakteristik
Protection grade IP67, suitable for harsh environments.
Respon dinamis yang baik dan ketahanan terhadap beban berlebih yang kuat.
The performance is stable and reliable over the long term.

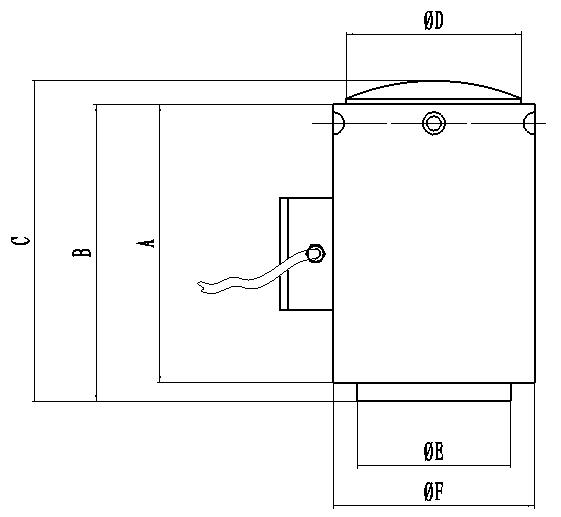

Dimensi (Dalam mm. 1 mm = 0,03937 inci)
CAP./SIZE
A
B
C
ØD
ØE
øF
t/mm
30
105
110
120
50
64
75
50
105
114
125
54
68
87
100
175
185
200
109
96
126
250～350
245
260
280
150
175
205
500～750
310
324
350
175
199
260
1000
455
470
493
160
280
340
Ib/inches（conversion of above dimensions）
66138.68
41.34
43.31
47.24
19.69
25.20
29.53
110231.13
41.34
44.88
49.21
21.26
26.77
34.25
220462.26
68.90
72.83
78.74
42.91
37.80
49.61
551155.65～771617.91
96.46
102.36
110.24
59.06
68.90
80.71
1102311.30～1653466.95
122.05
127.56
137.80
68.90
78.35
102.36
2204622.60
179.13
185.04
194.09
62.99
110.24
133.86
Diagram Sirkuit：
Merah: ＋masukan
Biru：-masukan
Putih： + keluaran
Kuning： -keluaran
Spesifikasi:
Jenis
Parameter teknis
Kisaran beban nominal
10～1000t
Catu daya
Tegangan 10~12 Volt
Saldo nol
1.0±% dari keluaran terukur
Keluaran analog
1.5±0.01mV/V
Resistansi masukan (Rlc)
750±20Ω（ohm）
Resistansi keluaran (Ro)
700±5Ω（ohm）
Resistansi isolasi
≥5000 MΩ (Mega-Ohm)
Presisi kelas
0,05%F.S.
Pengaruh suhu
0,05%F.S/10℃
Suhu operasi
-40～+85℃
Batas Beban Aman
200% FS
Margin keamanan terhadap imbal hasil
300% FS
Margin keamanan terhadap kerusakan
500% FS
Bahan bahan
Baja paduan kinerja tinggi atau (rasio kromium>15% baja tahan karat)
