Load Pin SM-P23L

Product Description

The SM-P23L load pin has a compact structure, a simple geometric shape, strong anti-torsion and anti-bending capabilities, stable performance and easy to install. It is widely used in the measurement of goods at ports and docks, as well as in the safety inspection of hoists and lifting equipment. An optional built-in amplifier 4-20mA is available.

Description

Detailed Description

The material is made of high-performance alloy steel or stainless steel.

Characteristics

Simple structure
strong anti-eccentric load capacity.
High measurement accuracy and stable performance.

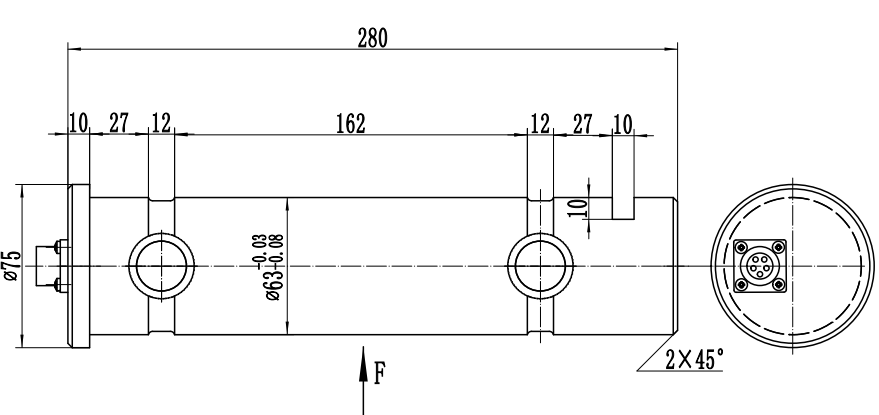

Dimensions（In mm. 1mm=0.03937 inches）

Measurement Principle

The pin sensor utilizes the elastic deformation of an elastic body under the action of an external force, causing the resistance value of the resistance strain gauge adhered to its surface to change (increase or decrease). Then, through the corresponding measurement circuit, this resistance change is converted into an electrical signal (voltage or current), thereby completing the force measurement process.

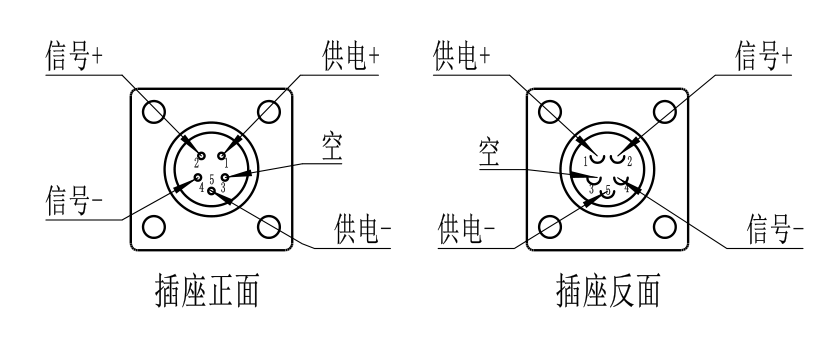

Circuit Diagram：

Specification：

Type	Technical parameters
Nominal load range	0～50t
Power supply	10~12 VDC
Drawing current	<100 mA
Double Independent redundant signal interface	Analog output	1.0±0.015mV/V
	Analog output	4～20mA/24VDC
	CAN Bus	CAN open CAN open Safety
Class precision	0.5%F.S
Effect of temperature	0.5%F.S/10℃
Operating temperature	-40～+85℃
Safe Load Limit	200% F.S
Safety margin against yielding	300% F.S
Safety margin against breakage	500% F.S
Material material	High performance alloy steel or (chromium ratio>15% stainless steel)
Protection type	IP67 (IEC60529)
Climate test	EN60068-2-30,DB55℃/100%
Vibration resistance	EN60068-2-6,5-500Hz,50g,10mm
Shock resistance	EN60068-2-27(half sine) 50g,11ms,1000shocks; 1000g,1ms,50shocks
