Sensor de coluna SM4

Descrição

The SM4 column load sensor is designed for the test of well power diagrams of pumping units.It is a sensor with high anti-interference performance.

It product adopts standard mv signal output and fully sealed design, and can operate in harsh environments such as high temperature, high cold, high humidity and high radiation. Widely used in the power diagram measurement system of oil pumping units.

It is widely aplicado em oilfield pumping unit well smooth rod force measurement, truck scales, rail scales, hopper scales and other measuring equipment.

Características

• More than ten years of use in the oil production plant, it has been continuously improved.
• Fully sealed waterproof design, suitable for all-weather use.
• Optimize the plug to enhance reliability.
• Convenient and safe operation.
• Zero adjustment is available externally.Use together with the SM38WX type wireless data transmission fixed load/displacement transmitter to form a wireless test system
• The output is consistent and completely interchangeable.
• SM4B and SM4F are integrated standard current and voltage output types.

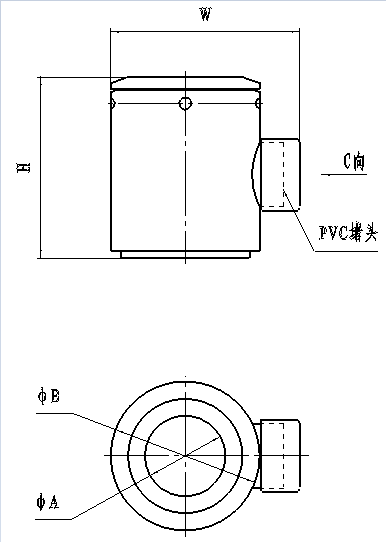

Dimensões (em mm. 1 mm = 0,03937 polegadas)

Diagrama de circuito:

1:     ＋input

2：    -input

3：    +output

4：    -output

5：   shielded

Especificação:
