The sensor is made of alloy steel or stainless steel and features a spoke-type structure. It is produced by introducing raw materials from the United States and the proprietary processing technology of the American BEAN Company. In terms of protection, it adopts silicone sealing and welding sealing, which has good waterproof performance.
download
Description
The sensor is made of alloy steel or stainless steel and features a spoke-type structure. It is produced by introducing raw materials from the United States and the proprietary processing technology of the American BEAN Company. In terms of protection, it adopts silicone sealing and welding sealing, which has good waterproof performance.
Applied to：
all kinds of electronic weighing equipment and tensile and compressive force testing equipment such us automobile scale, rail scale, testing machine, hopper scale、force measuring machine and hanging scale.
Characteristics
- excellent rigidity, strong resistance to lateral force, high precision, compact structure and convenient installation.

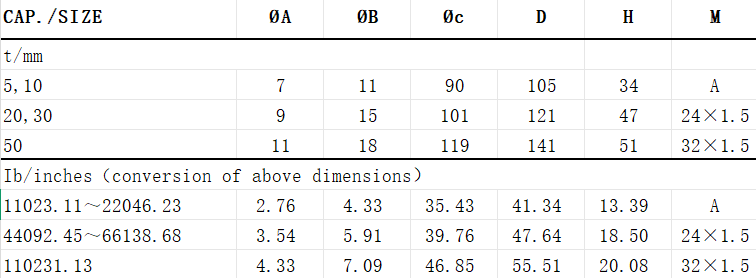

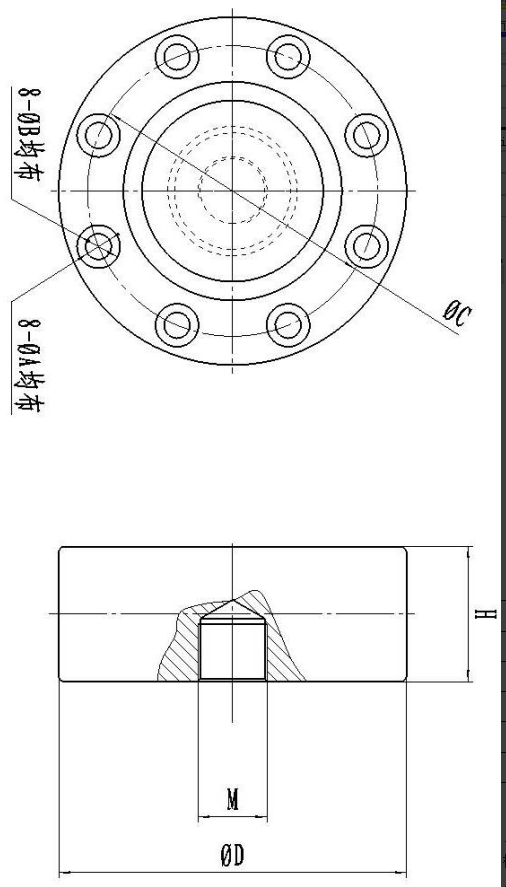

Dimensions（In mm. 1mm=0.03937 inches）
Circuit Diagram：
Red: ＋input
Blue： -input
White： +output
Yellow： -output
Specification：
| Type | Technical parameters |
| Nominal load range | 5～50t |
| Power supply | 10~12 VDC |
| Zero balance | 1.0±% of rated output |
| Analog output | 2.0±0.015mV/V |
| Input resistance（Rlc） | 780±20Ω（ohms） |
| Output resistance（Ro） | 700±5Ω（ohms） |
| Insulation resistance | ≥5000 MΩ（Mege-Ohms） |
| Class precision | 0.05%FS |
| Effect of temperature | 0.05%FS/10℃ |
| Operating temperature | -40～+85℃ |
| Safe Load Limit | 200% FS |
| Safety margin against yielding | 300% FS |
| Safety margin against breakage | 500% FS |
| Material material | High performance alloy steel or (chromium ratio>15% stainless steel) |
| Protection type | IP67 |
