Single Beam SM18XQ-A

Description

The SM18XQ-A single beam load cells introduce proprietary technology and processes from the United States to ensure the measurement accuracy and dynamic performance of each finished product and has been used in many military industrial units. It has a low profile, strong overload capacity, uniform stress distribution, and good resistance to lateral force and small influence from changes in loading position. It is applicable to various forklift scales, low-profile platform scales, bucket scales, silo scales and other force-electricity conversion primary instruments.

Characteristics

• High sensitivity, reliability and stability.
• Adopts active pressure head structure, which has good resistance to lateral force and impact force.
• Small size, simple in structure and convenient for installation and maintenance.
• Dust-proof, moisture-proof and anti-corrosion sealing measures and can work normally under relatively     harsh environmental conditions.

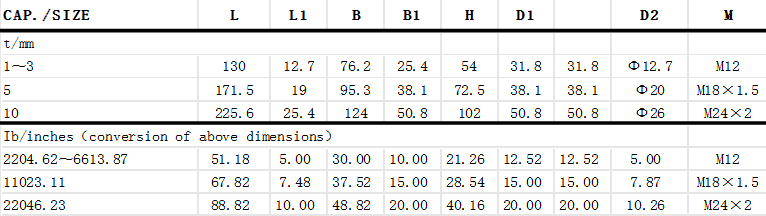

Dimensions（In mm. 1mm=0.03937 inches）

Circuit Diagram：

 Red:       ＋input

Blue：     -input

White：    +output

Yellow：   -output

Specification：
